KLayout

Before a chip is manufactured it exists as a set of shapes, one collection per mask layer, describing exactly where material will be deposited, etched or doped. Those shapes live in files that ordinary graphics software cannot open, and KLayout is the tool that opens them.

The formats are the industry’s own. One has been the exchange standard for decades and the other is its more compact successor, and between them they carry essentially every physical layout ever sent to a foundry.

What sits inside is not a drawing. It is a hierarchy, where a cell contains other cells which contain others, so a memory array is described once and placed ten thousand times rather than drawn ten thousand times. Understanding that structure is most of understanding the tool.

This is the physical end of a discipline that begins elsewhere, and LTspice covers the circuit simulation stage where the behaviour is decided before any shape is drawn.

Viewing at a scale that breaks other software

The first thing KLayout does better than most is open the file at all. Layouts reach hundreds of megabytes and beyond, containing millions of polygons, and a viewer that loads everything into memory before drawing anything is unusable at that size.

Here the hierarchy is used rather than flattened. You see the top level, descend into a cell, and only what is actually being displayed gets processed, which is why panning around a large design remains responsive.

Layer control is the other half. A layout carries dozens of layers, each representing a mask step, and each gets its own colour, stipple pattern and visibility toggle. Turning off everything except two layers to check their relationship is the fundamental operation of looking at a layout, and it needs to be immediate.

Two modes, and editing when you need it

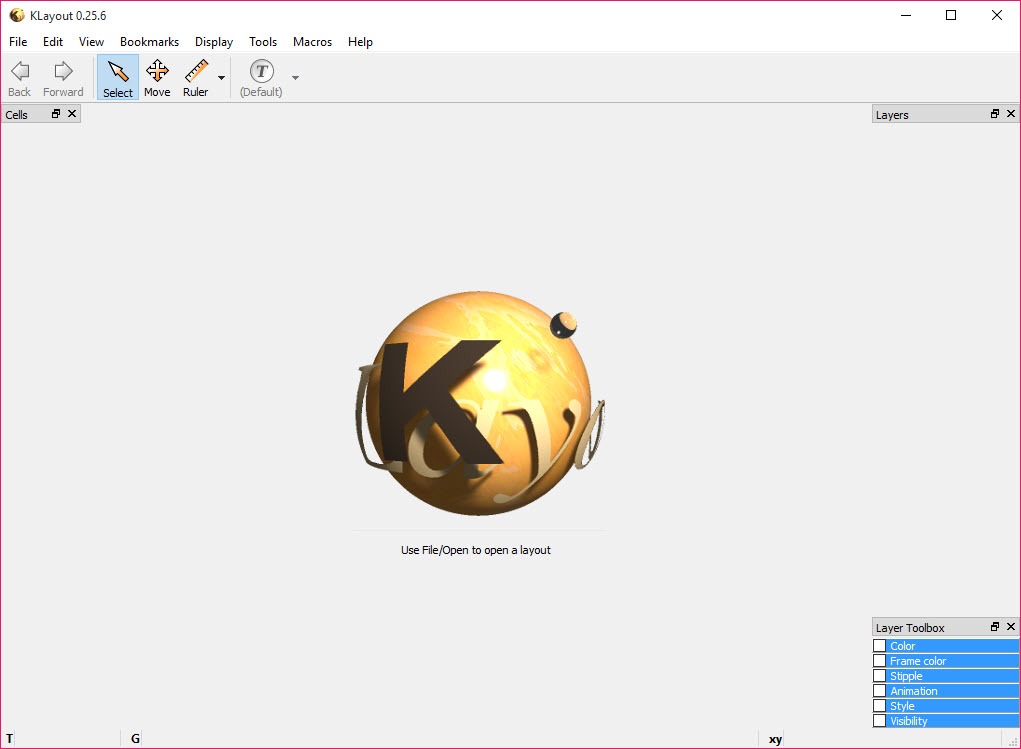

KLayout opens as a viewer by default, which is the correct choice given that most sessions involve looking rather than changing, and an accidental edit to a layout is not a small problem.

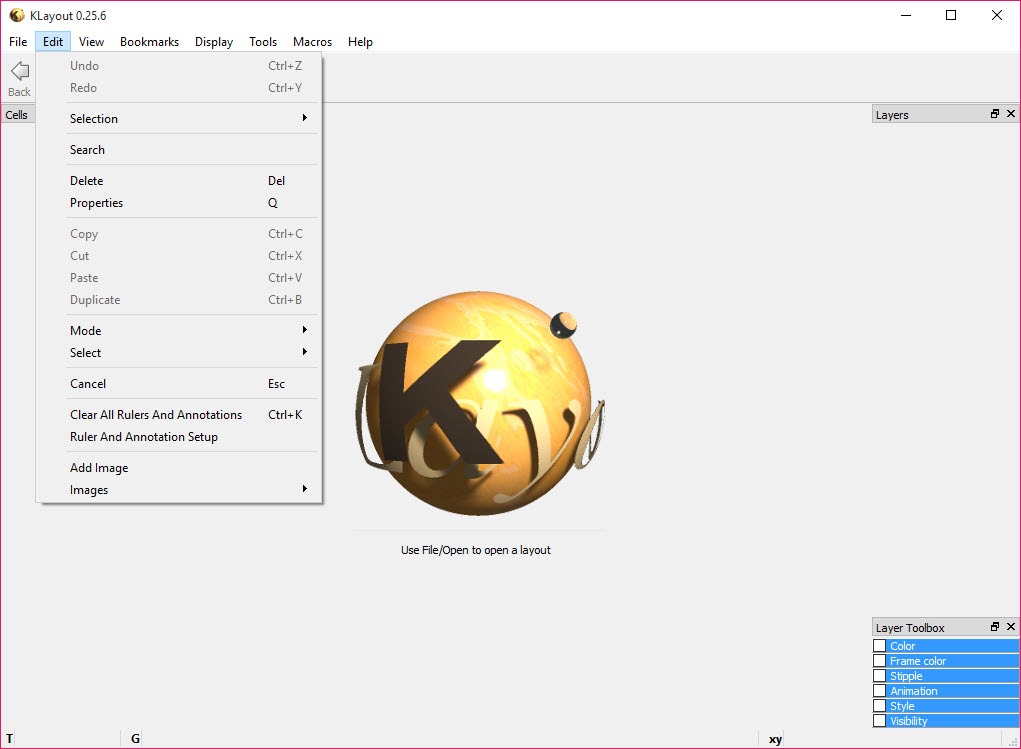

Switching to editor mode enables the drawing and modification tools. Polygons, paths, instances can all be created and adjusted, and the operations that matter in this field are the boolean ones, meaning the combination of shapes through union, difference, intersection, along with sizing a shape outward or inward by a fixed amount.

Those operations are how layout work is actually done. A guard ring is a shape minus a smaller shape, and a spacing check begins by growing one layer and asking whether it now overlaps another. For ordinary vector drawing that has nothing to do with chips, a general vector editor is the appropriate tool and this one would be a strange choice.

Design rule checking, expressed as code

Every manufacturing process imposes rules, and KLayout exists partly to check them. Minimum widths, minimum spacings, required enclosures of one layer by another, density requirements across an area. A layout violating any of them will not manufacture correctly, and a large design has millions of opportunities to violate one.

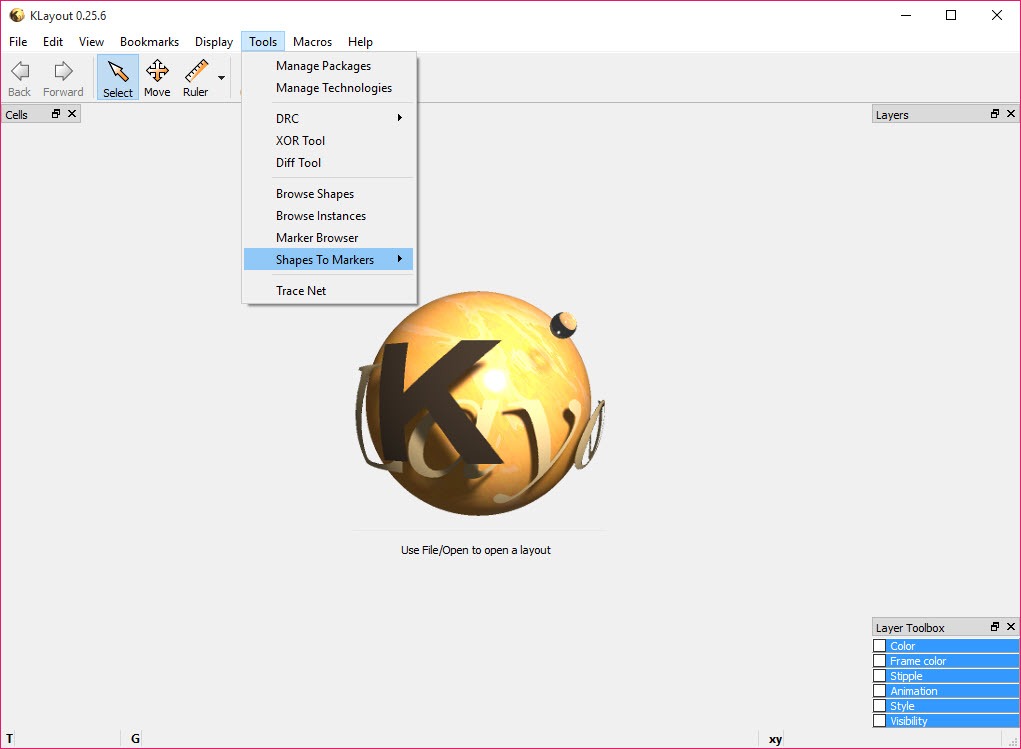

KLayout includes a checking engine driven by a scripting language of its own, in which those rules are expressed directly. A minimum spacing rule is a line stating that this layer, checked against itself, must maintain a given separation, and running it across the whole design reports every place it does not.

Layout versus schematic comparison sits alongside, extracting the connectivity implied by the shapes and comparing it against the circuit that was intended. That answers the question of whether what you drew is actually the circuit you designed, which is not obvious by inspection once a design passes any size.

Both capabilities matter because the commercial tools providing them are licensed at levels that put access out of reach for small teams, academics and individuals.

Scripting the application itself

Beyond that language, KLayout offers a full programming interface in two mainstream languages, with a macro development environment inside the application.

That means the geometry itself is programmable. A repetitive structure can be generated rather than drawn, a batch of files can be processed without anybody opening them, and a custom check can be written when the built-in language does not express what you need.

For anybody doing this work regularly, that scripting is where the time savings live. Manual layout editing is slow, and generating shapes from a description is both faster and repeatable, which matters when a parameter changes and everything derived from it has to change too.

Who this is actually for

The honest KLayout audience assessment is short. Chip designers, photomask engineers, people working with microfabrication and academics teaching or researching in those areas.

For everybody else there is nothing here, because the files it opens do not exist outside that world and the operations it offers make sense only within it. This is not a general graphics tool that happens to read an unusual format.

Within that audience it occupies an unusual position, being capable enough for real work in a field where the alternatives are licensed at prices that assume a corporate budget. That combination is why it appears in university courses, in small design houses and in the toolchains of people who could not otherwise participate.

Conclusion

KLayout does a specialist job thoroughly. Opening layouts that other software cannot, navigating a hierarchy rather than a flattened picture, checking a design against manufacturing rules and scripting the geometry itself are the operations this field requires, and they are all here.

Its significance is partly about access. The commercial tools in this space are licensed at levels that assume a corporate budget, so a capable alternative available to a student, a researcher or a two-person design house changes who can participate at all. For the narrow audience that needs it, that matters considerably more than any individual feature.
