WinBox

Every MikroTik router ships with a professional-grade operating system and no real front panel, and WinBox is the tool that bridges that gap. It’s a small, single-file utility that opens the entire RouterOS configuration as a windowed desktop interface. Firewall rules, wireless settings, routing tables, queues, and live traffic graphs all appear in familiar clickable form instead of console commands.

The feature that makes network technicians keep it on every USB stick has nothing to do with menus, though. WinBox can connect to a router by MAC address, at layer 2, below the level where IP addresses even matter.

A device fresh from the box with no address configured, or one you just locked yourself out of with a bad network setting, still appears in the neighbor list and still accepts a connection.

For everyone who has ever misconfigured a remote interface, that capability alone justifies the download.

Finding routers you can’t ping

Launch the program and the Neighbors tab immediately lists every MikroTik device it can hear on the local network, with model, identity, and both addresses shown. Double-click an entry to connect by IP when the network is healthy, or by MAC when it isn’t.

The discovery works both ways as a diagnostic. A router missing from the list is telling you something about cabling or the switch between you before you’ve typed a single command.

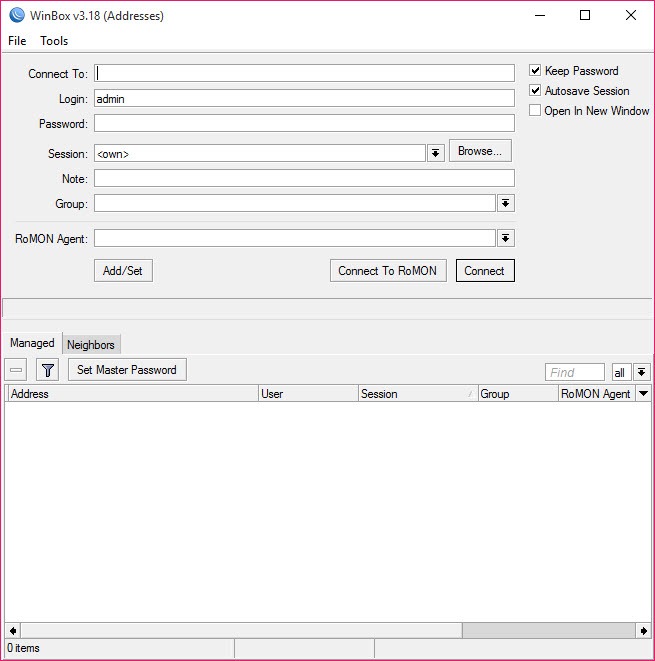

Saved sessions round out the daily workflow. Addresses, credentials, and notes for a whole fleet of routers live in the manager, organized into groups, so a technician servicing dozens of sites connects to any of them in two clicks.

Secure mode encrypts the session, and it should stay enabled everywhere except when talking to prehistoric devices that predate it.

The whole operating system in draggable windows

Once connected, the layout follows the RouterOS menu tree down the left edge, and every section opens as a child window inside the main one. Firewall in one window, the interface list in another, a live torch of traffic on a suspect port in a third, arranged however the problem at hand demands. Values edit in place, lists sort and filter, and rules drag into a new order directly, which matters enormously in a firewall where order decides everything.

Nearly everything the console can do, this interface can do, and the reverse trip is built in too, since a terminal window opens inside WinBox for the occasions when a command is simply faster.

Files transfer to and from the router by drag and drop, covering backups, update packages, and certificate uploads without a separate transfer tool. The one honest gap is that a handful of the newest or most obscure settings surface in the command line first, so heavy RouterOS users end up bilingual anyway.

A word of practical caution that belongs in any honest review. The management port should never face the open internet, a lesson the MikroTik world has learned repeatedly, so remote administration belongs behind a VPN, with the router’s own firewall restricting who may connect.

The tool gives you the rope. Hanging the router with it is optional.

Where it fits among the alternatives

RouterOS also offers WebFig, a browser-based twin of the same interface, and plain SSH for command-line purists, so nothing forces this tool on you. In practice it wins on speed and density. Windows open faster than web pages, multiple views coexist without tab juggling, and the MAC-level rescue connection has no browser equivalent at all.

A generic client like PuTTY covers the SSH route for script-minded admins, but it can’t step into a router that has lost its address. Ordinary network scanners have the same blind spot, since they hunt by IP.

The scope limit is absolute, and worth stating plainly. WinBox manages MikroTik equipment and nothing else. Pointing it at any other brand of router accomplishes nothing, and buyers researching general network tools should read this as a specialist instrument, not a universal dashboard. For watching what actually crosses the wire once the router is configured, packet analysis belongs to Wireshark, a natural companion rather than a competitor.

The interface itself carries the usual engineering-tool tax. Dozens of overlapping child windows get messy in a long session, nothing is animated or modern, and the sheer surface area of RouterOS means a newcomer faces hundreds of menus with no wizard holding their hand.

That’s the operating system’s own complexity, reproduced exactly, and no configuration tool can hide it.

Conclusion

WinBox is essential in exactly one world and pointless outside it. Network admins, internet providers, and home-lab builders running MikroTik hardware get the fastest way to configure RouterOS, plus the MAC-level lifeline that turns lockouts from disasters into two-minute fixes. The saved-session fleet handling makes it just as much a professional’s tool as a hobbyist’s.

If your rack holds other brands, nothing here applies to you. For the MikroTik crowd, it’s not really a choice among alternatives, it’s the default hands, and the alternatives are what you use when you can’t reach them.
