About LTspice
Circuit simulators divide into the ones with a node limit and the ones you pay for. LTspice belongs to neither, running circuits of any size for nothing, which is why it turns up on the machines of people who have never bought a component from whoever makes it.

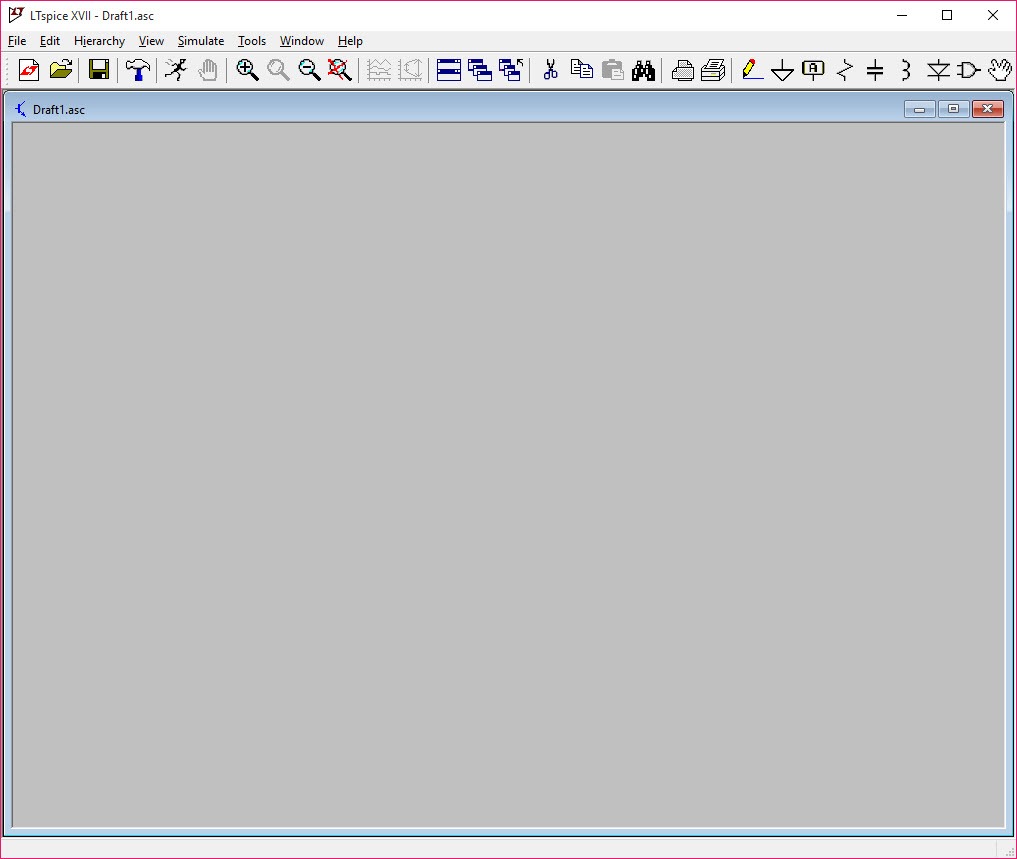

LTspice combines a schematic editor, a simulation engine and a waveform viewer. Draw the circuit, choose what to analyse, run it, then click on any wire in the schematic to see the voltage there and any component to see the current through it.
That probing behaviour is the part that makes it teachable. A circuit stops being algebra and becomes something you poke at, and the waveform appears where you clicked.
The analyses that matter

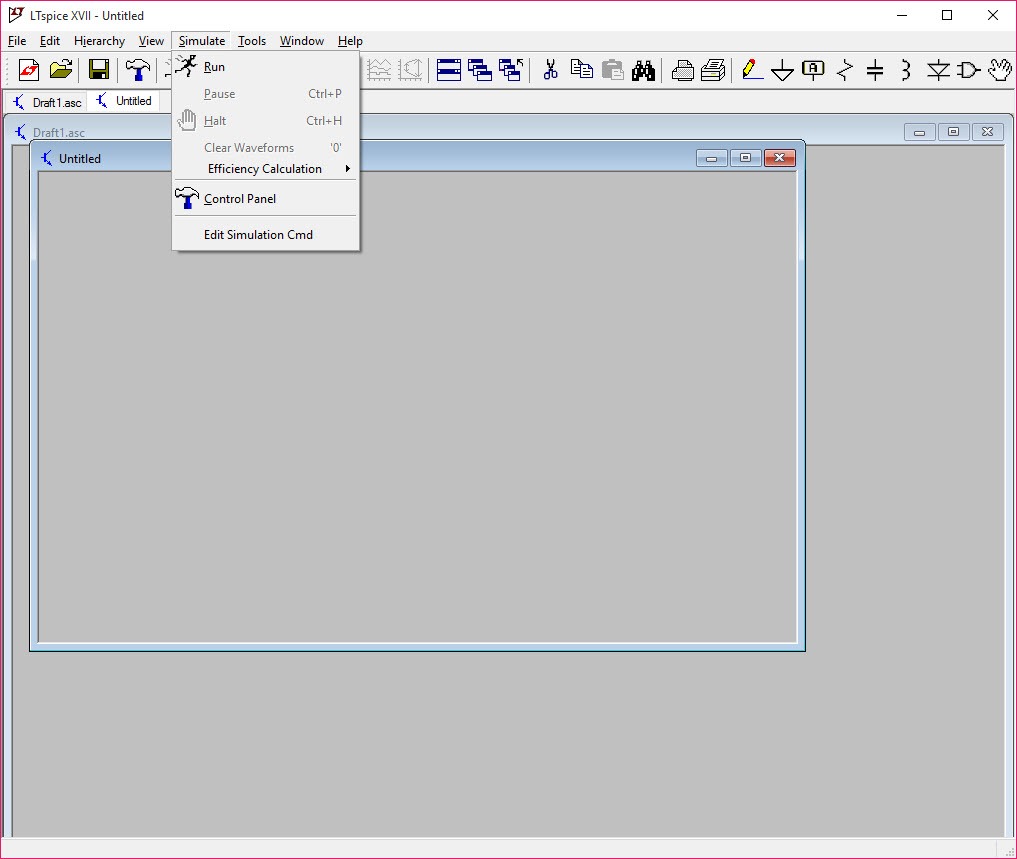

LTspice offers several kinds of simulation, and three account for almost everything people run.
Transient analysis shows behaviour over time, which is what you want for a switching regulator settling, a filter responding to a step, or an oscillator starting up.
Frequency sweep shows gain and phase across a range, which is how a filter is checked against its intended response and how an amplifier’s stability margin is read.
Sweeping a parameter is the third and the most underused. Any value can be stepped across a range and the results overlaid, so the effect of a resistor changing, or a temperature varying, or a component landing anywhere within its tolerance, appears as a family of curves rather than a single answer.
Simulating a physical structure rather than a circuit is a separate discipline, and 4nec2 models antennas from their dimensions before anybody cuts metal.
That last one is how a design gets checked properly rather than optimistically, and it takes one extra line.
Simulation is not the board
Here is the fact worth more than any LTspice feature, and it catches people who trust a clean result.
A simulation contains what somebody chose to model. Component behaviour is described by equations fitted to measurements, and everything outside those equations is absent.
What is typically absent is the layout. Track inductance, ground bounce, coupling between adjacent traces, the resistance of a connector, the thermal behaviour of a part warming up next to another part, none of that exists unless you add it deliberately.
So a switching regulator that simulates beautifully can oscillate on a board because of a ground path nobody drew. That is not a failure of the simulator, it is the simulator answering the question you asked rather than the one you meant.
The habit that fixes this is adding the parasitics you know about, meaning a small series resistance and inductance on the components where it matters, and treating a clean result as a starting point rather than a verdict.
For the physical side afterwards, meaning turning a working circuit into something that can be built, Fritzing covers layout and documentation at the hobbyist end.
The model library has a bias, and it is not hidden
LTspice exists because somebody sells components, and that shapes what is easy.
Parts from the maker are modelled thoroughly and behave properly, so designing around their regulators and amplifiers is smooth. Generic components are present too, meaning ordinary transistors, diodes and passive parts.
A specific part from a different manufacturer is where the work appears. That manufacturer usually publishes a model, and importing it is a documented process rather than a difficult one, and it is a step nobody mentions when describing the software as free.
None of this is concealed and it is worth understanding before assuming any component you name will simply be there.
The interface will not meet you halfway
Being direct about the LTspice barrier, because it is why people give up in the first hour rather than the third week.

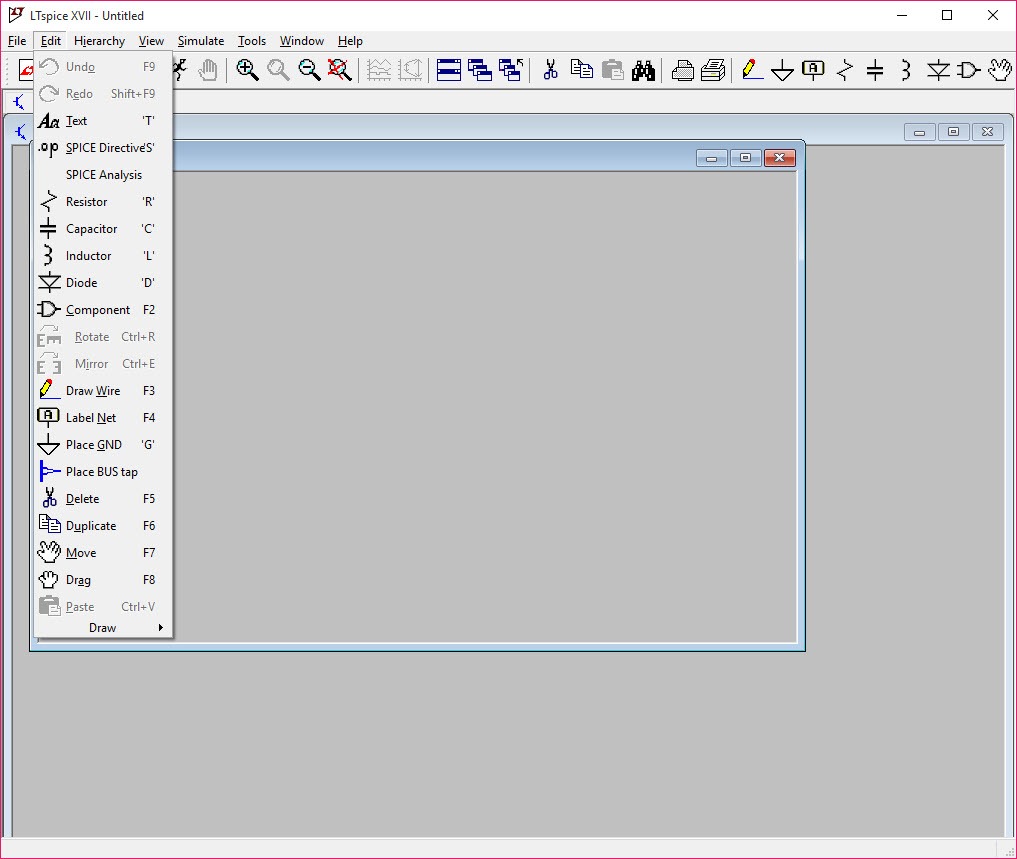

The conventions are its own. Placing a wire, moving a component, editing a value and running an analysis all work in ways that resemble nothing else, and the keyboard shortcuts are the fast path once learned and invisible until then.
The concepts are not the difficulty. Somebody who understands circuits still spends a couple of evenings learning where things are, which is better known in advance, so the frustration reads as unfamiliarity rather than incompetence.
When a simulation refuses to converge
The LTspice failure people meet eventually deserves explaining, since the message is unhelpful.
A simulation solves equations repeatedly until the answers stop changing. Sometimes they never settle, and the run stops with a convergence error rather than a result.
The usual causes are practical rather than mysterious. An idealised component with no resistance anywhere, a circuit with no path to ground, a switch changing state infinitely fast, or initial conditions that leave the solver nowhere sensible to start.
Adding a little series resistance, giving nodes a path to ground and softening perfectly abrupt transitions resolves most cases, and knowing that turns an evening of confusion into a five minute fix.
The same pattern of a specialised tool with its own conventions shows up elsewhere in this field, and a viewer for chip layout files with rule checking built in is the equivalent at the silicon end.
Conclusion
LTspice is the rare case of software given away without being crippled, and the result is that students, hobbyists and professionals all end up using the same tool. Unlimited circuit size, fast simulation and probing by clicking make it properly good for learning as well as for work.
Hold two things in mind while using it. The model library is strongest around one manufacturer’s parts, which is the arrangement that pays for the software, and a simulation only contains what somebody modelled. Add the parasitics you know about, sweep your tolerances, and treat a clean waveform as encouragement rather than proof.
Pros & Cons
- No node limit or component restriction, on a simulator that costs nothing
- Probing by clicking the schematic, so results appear where you look
- Parameter sweeping overlays results, which checks a design against tolerance
- Fast on switching circuits, which is what it was built for
- Models from other manufacturers can be imported
- Used widely enough that answers to most problems already exist
- Layout effects are absent unless you model them yourself
- Component models from other makers must be found and imported
- The interface follows its own conventions and takes a few evenings
- Convergence failures produce an unhelpful message and need diagnosis
- A clean simulation is not evidence the board will work
Frequently asked questions
Because it exists to make designing with a particular manufacturer's components easy, which sells components. The consequence is that their parts are modelled thoroughly and other manufacturers' parts need importing.
As a starting point rather than a verdict. Track inductance, ground paths, coupling and thermal behaviour are absent unless you add them, so a circuit that behaves perfectly on screen can misbehave on a board.
Running the same simulation across a range of values and overlaying the results, so you see what happens when a component drifts within tolerance or the temperature changes rather than only what happens at nominal values.
Because the equations never settled. Idealised components with no resistance, nodes with no path to ground and infinitely fast transitions are the usual causes, and small amounts of resistance or softened edges usually resolve it.
The interface is, more than the concepts. Its conventions resemble nothing else, so expect a couple of evenings of unfamiliarity even if you already understand circuits.
